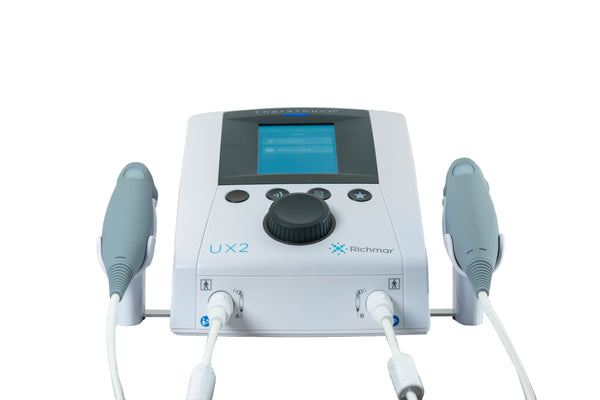

The Richmar TheraTouch UX2 is an advanced clinical-grade therapeutic ultrasound device, utilizing non-invasive high-frequency sound waves to create mini vibrations that help raise the temperature of soft tissues in a targeted area of the body to provide pain relief and to loosen tight muscles.

Equipped with a menu-driven, color touchscreen interface that intuitively groups and displays clinical protocols, guiding clinicians step-by-step to ensure ideal therapeutic treatment for any given patient.

Appropriate parameter settings
Ultrasound applicator recommendations
Dual-holster design to accommodate both size applicators
Ergonomically designed sound head provides for an excellent ERA

With a comprehensive library of ultrasound treatment education for better treatment outcomes and improved clinical efficacy, a few simple key presses are all that is needed to quick-start a therapeutic ultrasound session.

Individual technical parameters can also be easily selected. Clinicians can choose to use preset clinical protocols or customize their own. The “Favorites” feature also allows user-defined protocols to be stored for future use.

Indications For Ultrasound:

Relief of pain, muscle spasms and joint contractures that may be associated with:

Adhesive capsulitis
Epicondylitis
Bursitis with slight calcification
Myositis
Soft tissue injuries
Shortened tendons due to past injuries and scar tissues
Ligament sprains

Relief of sub-chronic, chronic pain and joint contractures resulting from:

Capsular tightness
Capsular scarring

Key Features:

Built-In Comprehensive Library Provides Treatment Education
Sleek, User-Friendly, Ergonomic Design for Tabletop or Therapy Cart Use
Large, Easy-to-Read, Color LCD Display with Touch Screen Interface
Clinical Protocols Provide Parameters for a Variety of Acute and Chronic Conditions
“Favorites” Feature Allows Storage Up to 99 Custom Programs for Future Use
1 and 3 MHz Ultrasound Frequencies
Pulsed and Continuous Modes
The ONLY Clinical-Grade Ultrasound Device That Comes Standard With Dual Soundhead Applicators - 1 cm² & 5 cm²
Low BNR Ratio 5:1
Ultrasound Amplitude Can Be Toggled Between W and W/cm²
Sound Head Coupling Feature
Optional Therapy Cart Integrates with the Unit and Keeps Supplies Organized and Ready for Treatments
Industry-Leading 3 Year Manufacturer Warranty

Technical Specifications:

Number of Channels: 4, Isolated
Treatment Time: 1 - 60 min, adjustable
Power Supply: 100–240 VAC, 50-60 Hz
Duty Factor: (L, M, H): 30%, 40%, 50%
Dimensions: 11.25" x 7.75" x 9.5"
Weight: 5 lbs.

Ultrasound:

Frequency: 1 and 3 MHz
Duty Cycles: Pulsed and Continuous
Pulse Frequency: 100 Hz
Pulse Duration: 1 - 9 mSec ± 10% (set by Duty Cycle)
Ramp (Fixed): 1s
Treatment Time: 1 - 60 minutes

Package Contents:

TheraTouch UX2 Device (Part #: DQ2000)
Instruction Manual (Part #: DQ8000-MAN)
Power Cord (Part #: DQ8000X)
Ultrasound Bracket with Screws (Part #: DQBRKT)
Ultrasound Holster - 2 pieces (Part #: DQHLSTR)
1 cm² Sound Head (Part #: DQ8002W1)
5 cm² Sound Head (Part #: DQ8002W5)
8 oz. Bottle of Therasonic Ultrasound Gel (Part #: LS5288)

TheraTouch UX2 Clinical Ultrasound Therapy Device
